Product Description
Technical Specification
- Stove – Width:48cm, Depth:41cm, Height: 100cm
- Chimney – Outer diameter: 20cm, Inner diameter: 15cm, Height (incl. hat): 200cm
- Total assembly height: 300 cm
- Designed for Hypedome M and Hypedome L
- Minimal assembly required
- Can be installed in up to 5 positions (3 with Privacy Curtain)
- Stove – Width: 18.9 in., Depth: 16.1 in., Height: 39.4 in., Weight: 150 lbs
- Chimney – Outer diameter: 7.9 in., Inner diameter: 5.9 inches, Height: 78.7 in.
- Total assembly height: 118 inches
- Designed for Hypedome M only
- Minimal assembly required
- Can be installed in up to 5 positions (3 with Privacy Curtain)
1
Weather resistant flashing
Powder coated steel panel with custom heat-resistant gasket
2
Insulated chimney
Double-walled chimney with mineral wool insulation
3
Air-flow regulators
Adjust the temperature with three sliders
4
Neoceram window
Heat-resistant ceramic glass with a clean window system (soot-resistant)
5
Fire clay lining
Durable and features great heat-retaining properties
6
Ash collection tray
Ash flows down the furnace into the tray, making cleaning much easier

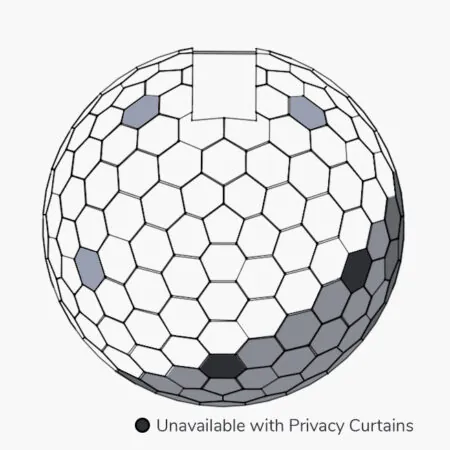

Possible positions
- Kits can be installed in either 5 or 3 locations depending on whether your dome features Privacy Curtains.
